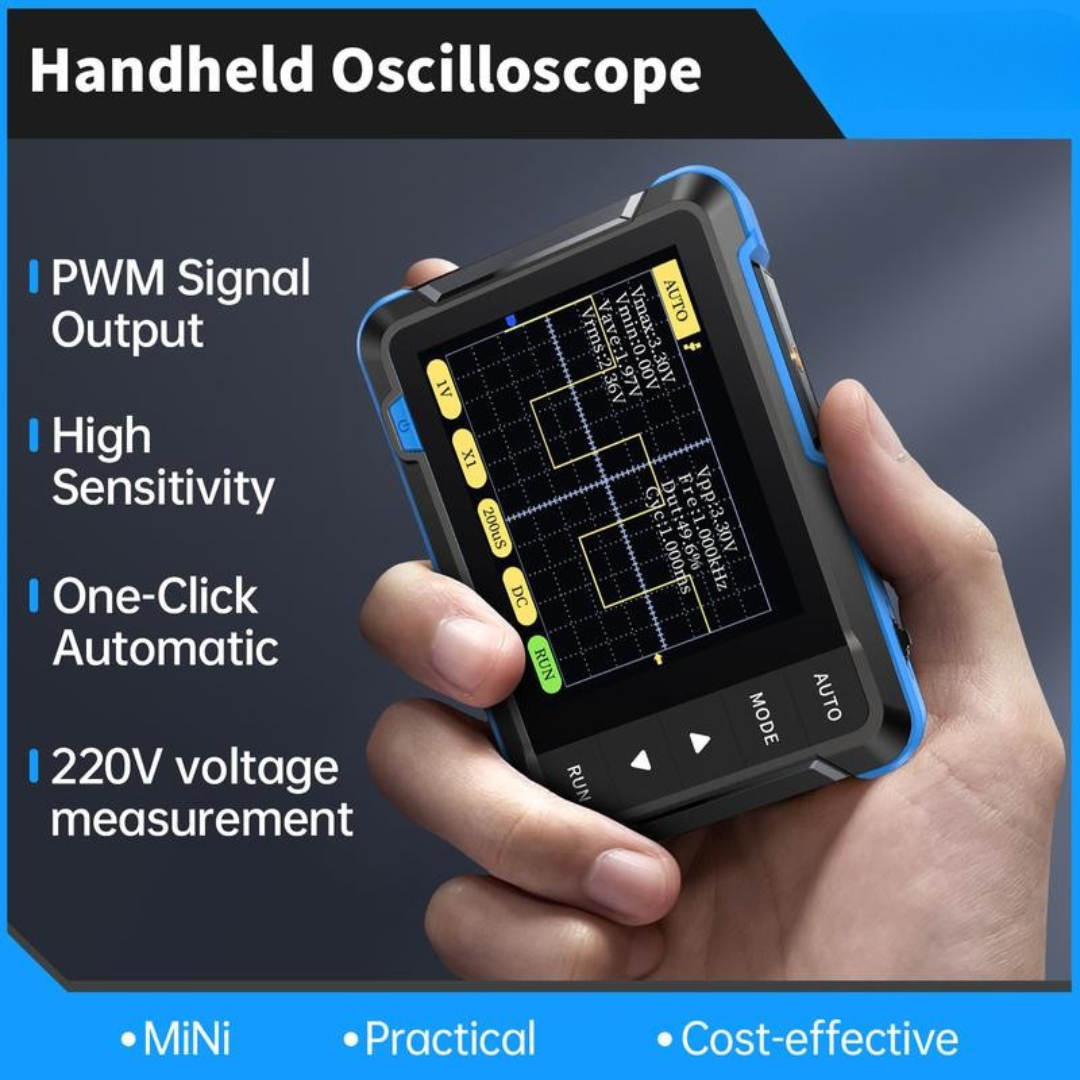

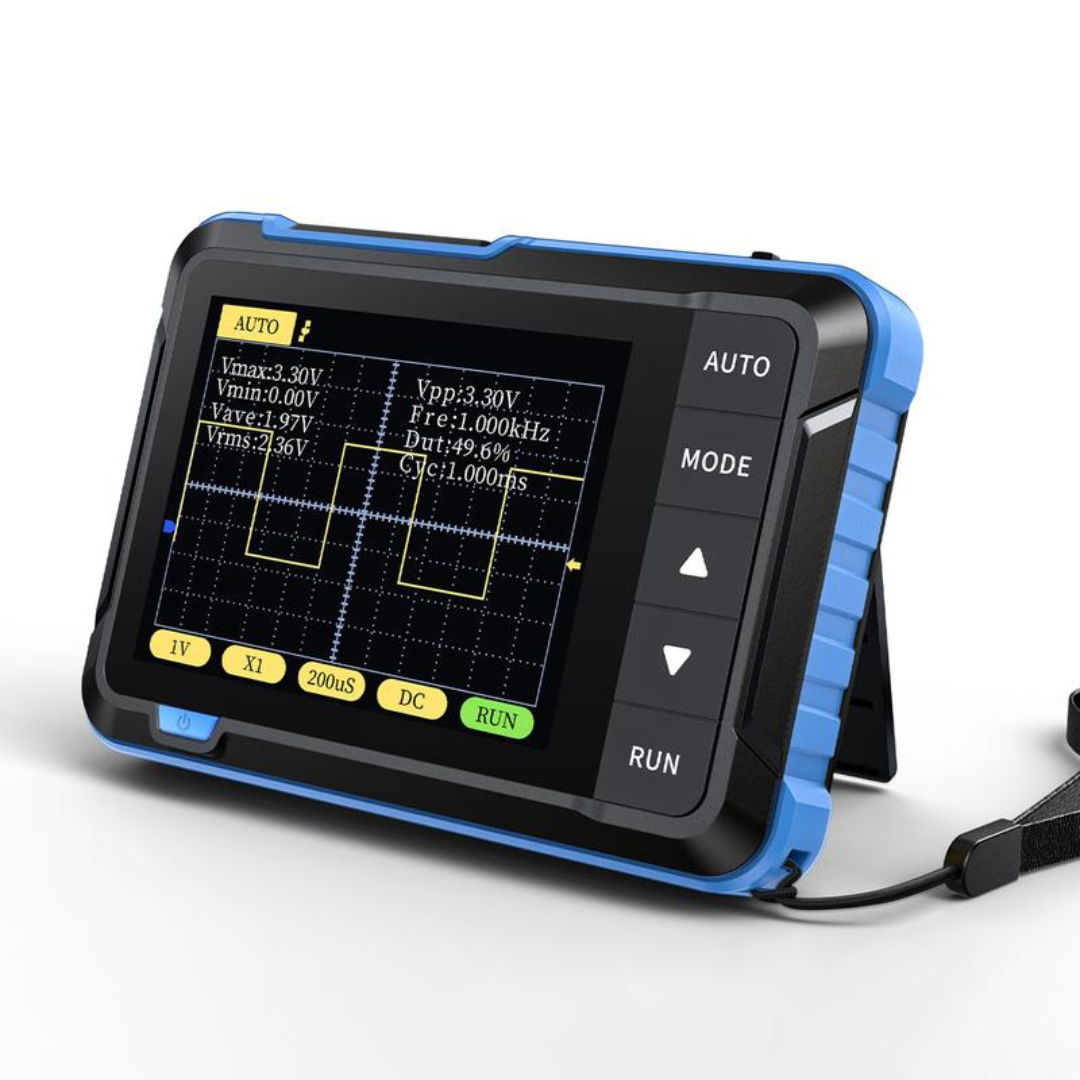

Make electrical troubleshooting more accessible with the SignalView Pro, a pocket-sized digital oscilloscope designed for electronics maintenance, DIY projects, educational work, appliance repair, and automotive electrical diagnostics. Its 2.8-inch 320 × 240 LCD presents waveforms and measurement information on a clear color display, while the one-key AUTO function automatically adjusts the waveform display to reduce manual setup.

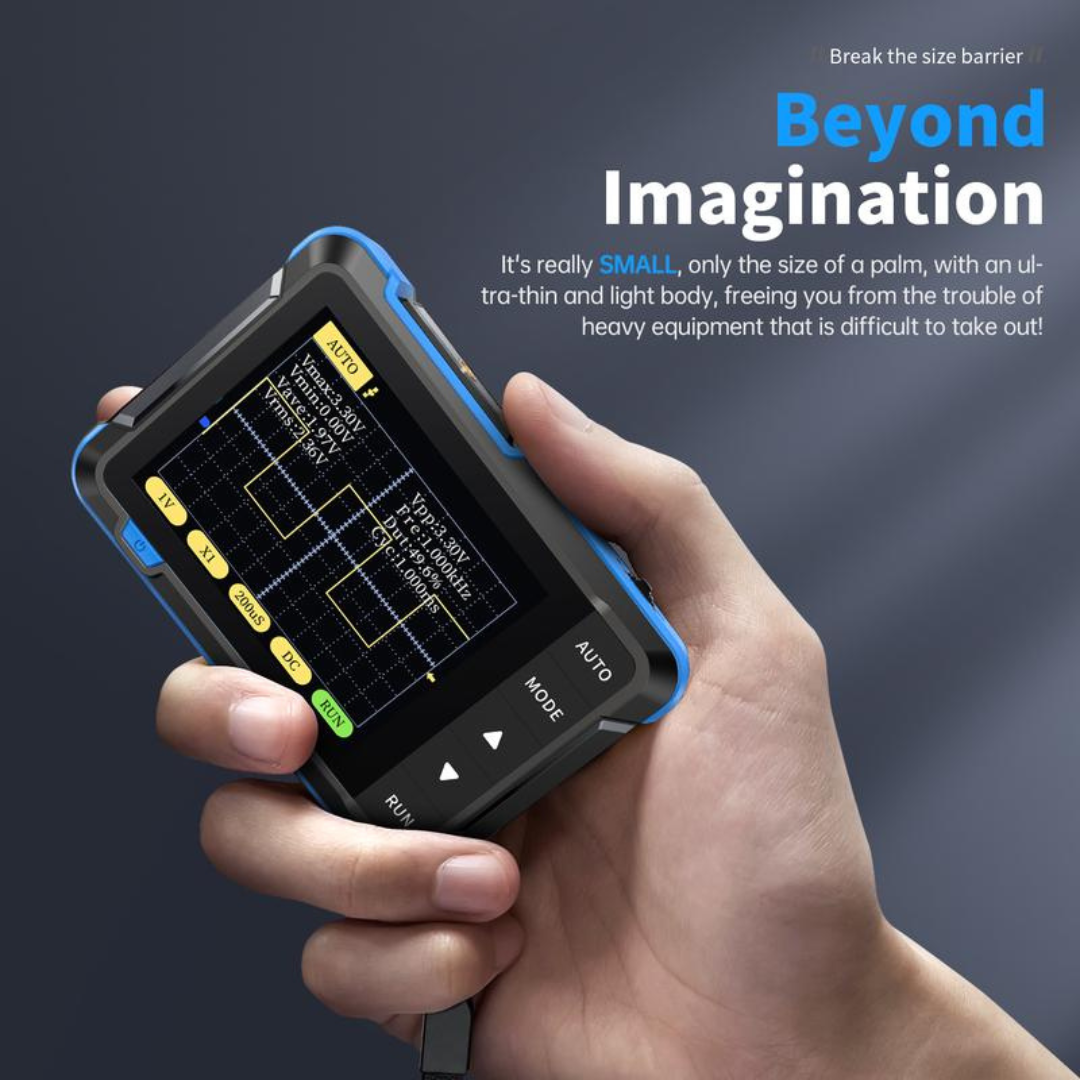

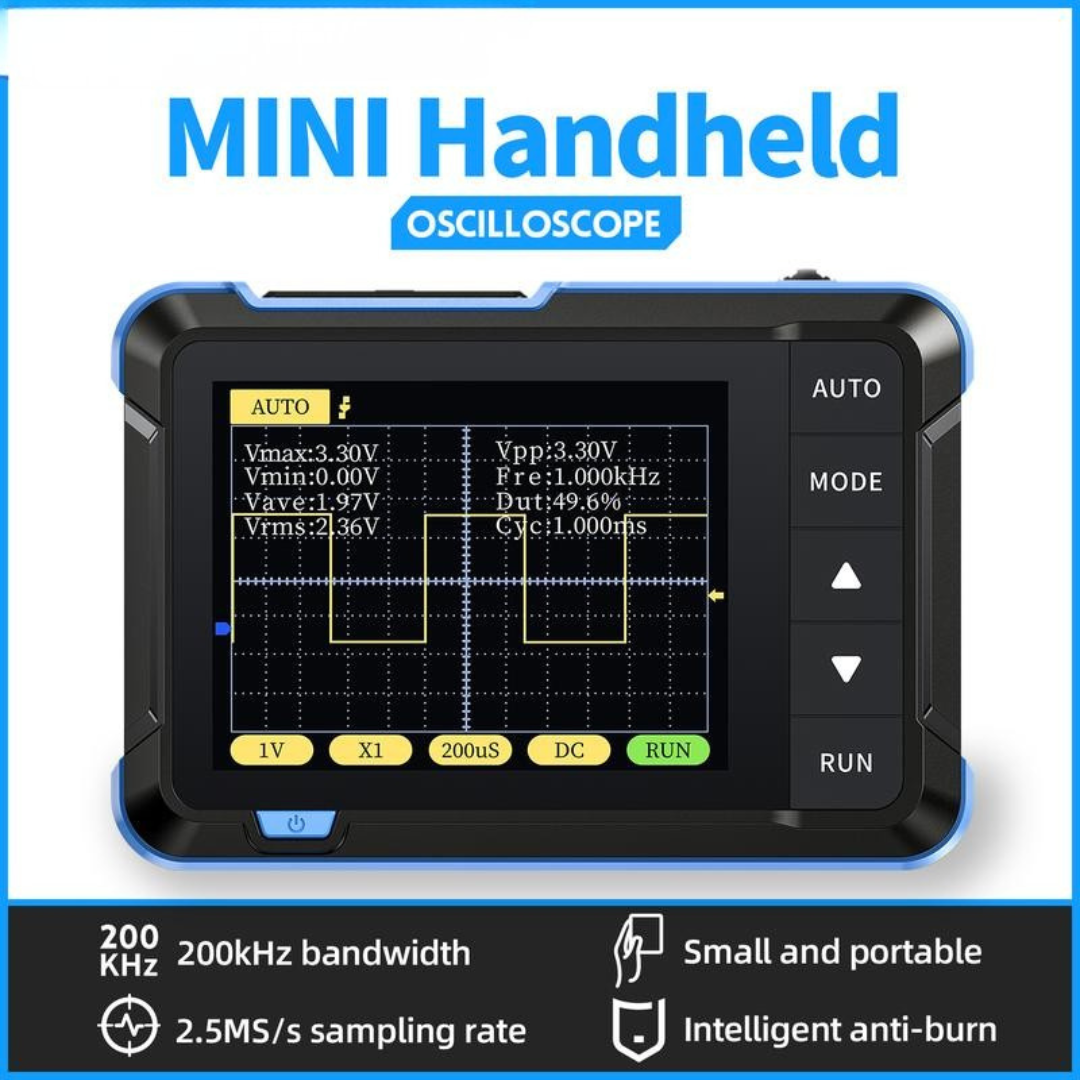

Despite its compact 99 × 68.3 × 19.5 mm body, the SignalView Pro delivers a 2.5 MS/s sampling rate and 200 kHz bandwidth. It supports Auto, Normal, and Single trigger modes, AC/DC coupling, and X1/X10 probe ranges reaching ±40 V and ±400 V respectively. A built-in 1000 mAh rechargeable battery provides approximately four hours of operation per full charge, making it suitable for both stationary and portable troubleshooting.
SPECIFICATIONS:
- Product Type: Handheld Digital Oscilloscope
- Channels: 1
- Real-Time Sampling Rate: 2.5 MS/s
- Analog Bandwidth: 200 kHz
- Display Size: 2.8 inches
- Display Resolution: 320 × 240
- Vertical Sensitivity: 10 mV/Div–20 V/Div
- Time Base Range: 10 μs/Div–50 s/Div
- X1 Voltage Range: ±40 V / 80 Vpp
- X10 Voltage Range: ±400 V / 800 Vpp
- Trigger Modes: Auto / Normal / Single
- Coupling: AC / DC
- Calibration Square Wave: 1 kHz, 50% duty cycle

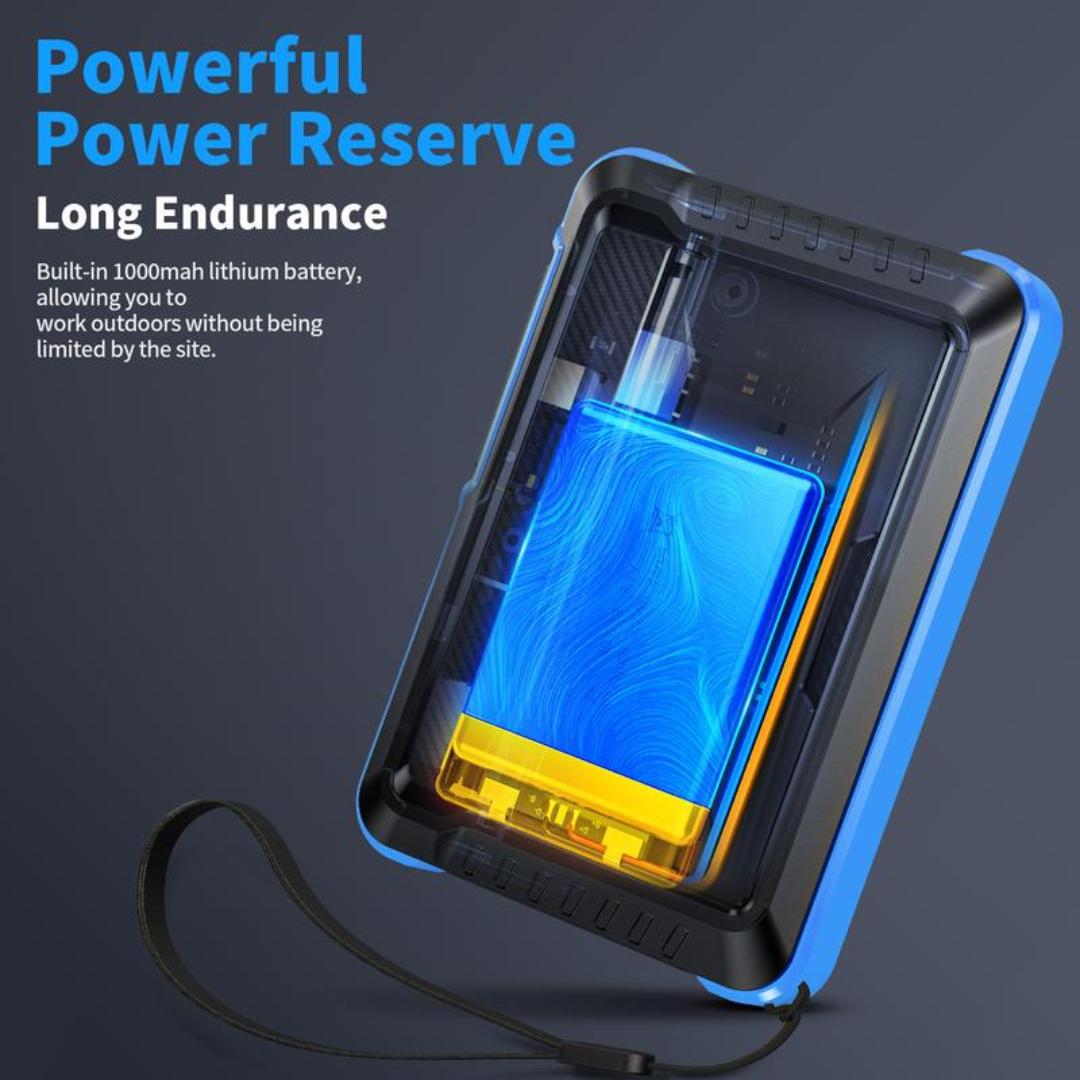

- Battery Capacity: 1000 mAh rechargeable lithium battery
- Operating Time: Approximately 4 hours per full charge
- Charging: USB Type-C, 5 V / 1 A
- Product Size: 99 × 68.3 × 19.5 mm / 3.90 × 2.69 × 0.77 in
- Product Weight: 100 g / 3.53 oz

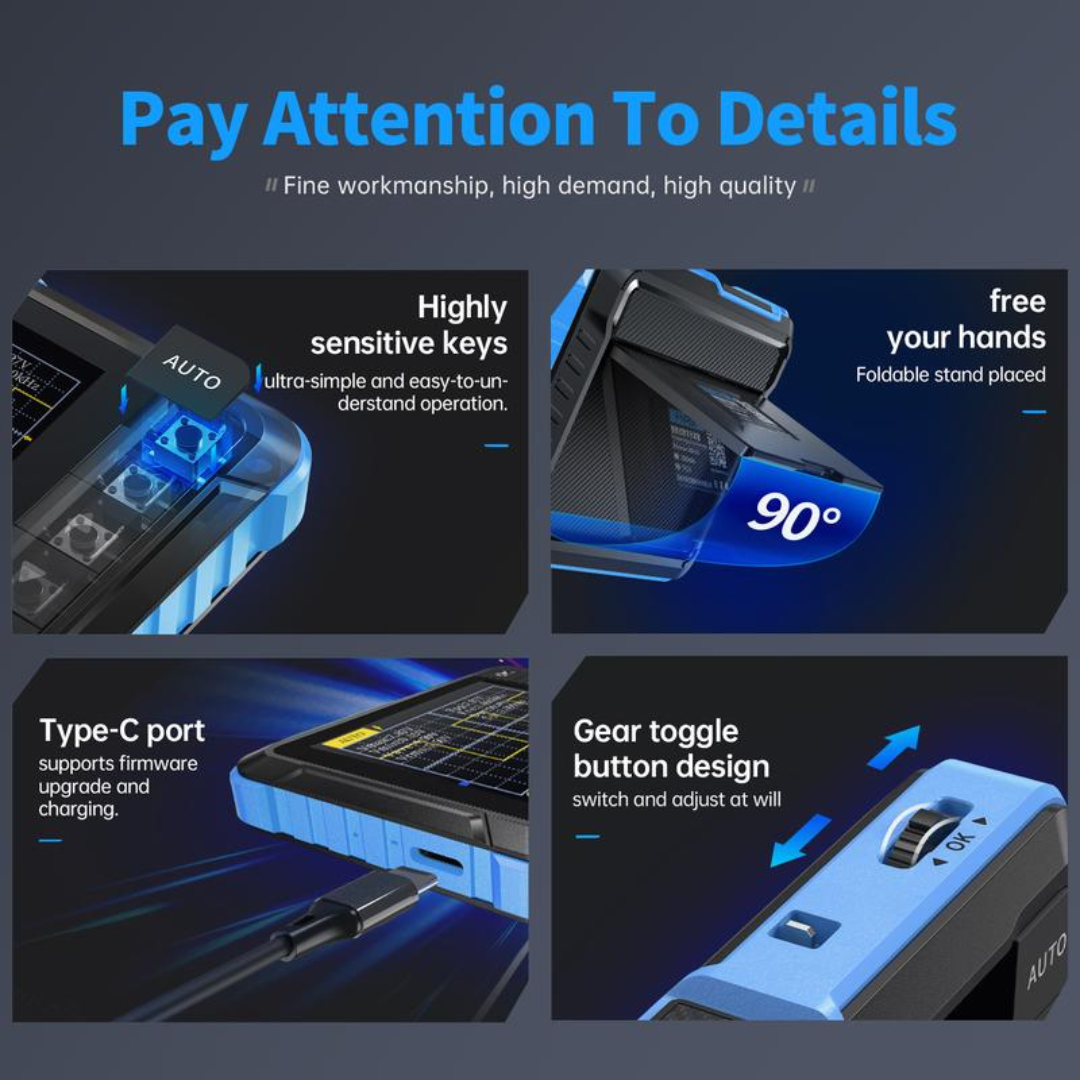

- Design: Compact handheld body with foldable rear stand
- Recommended Applications: Electronics maintenance, DIY electronics, appliance repair, automotive electrical diagnostics, education, research, and field troubleshooting
What's Included
- 1 × SignalView Pro
- 1 × Oscilloscope Probe
- 1 × USB Type-C Charging Cable
- 1 × User Manual
❓ How to Use
❓ How to Use

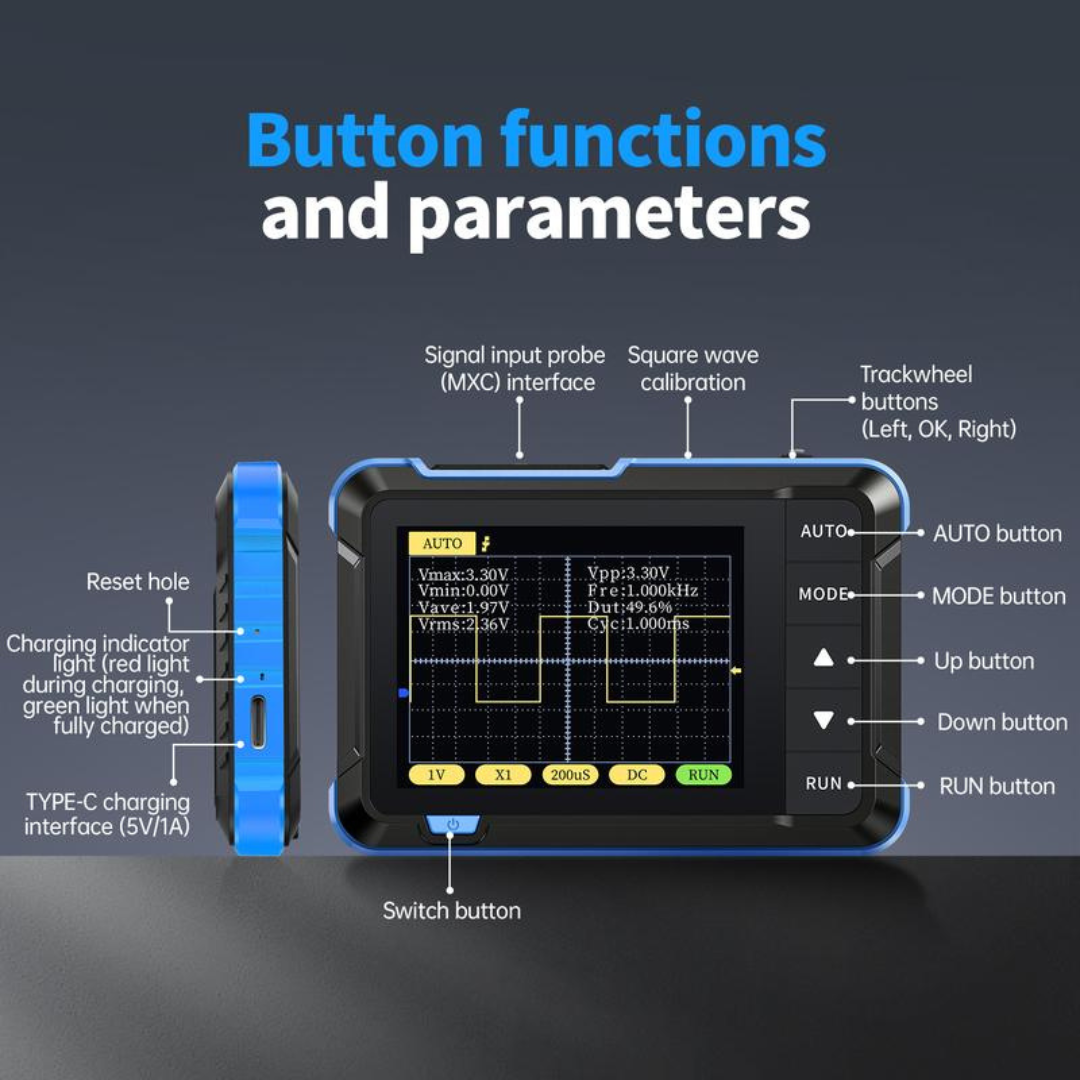

- Power On the Device — Make sure the SignalView Pro has sufficient battery power, then switch the oscilloscope on.
- Connect the Probe — Insert the compatible oscilloscope probe into the signal-input interface and select the appropriate X1 or X10 probe setting for your measurement.
- Connect to the Circuit — Attach the probe ground correctly and place the probe tip on the signal point you want to inspect.
- Use AUTO Adjustment — Press AUTO to automatically adjust the display and quickly bring the measured waveform into view.
- Fine-Tune Your Measurement — Adjust vertical sensitivity, time base, coupling, and trigger settings when more precise waveform positioning is required.
- Pause and Analyze — Use RUN to pause the waveform when you need additional time to inspect the displayed signal and measurement information.
See Why People Love Our SignalView Pro
See More. Diagnose Faster.
The SignalView Pro puts waveform analysis directly in your hand with a clear display, one-key AUTO adjustment, and essential measurement controls for everyday electronics troubleshooting.
Your Workbench, Now Pocket-Sized.
Take essential oscilloscope functionality beyond the bench with a lightweight rechargeable design built for projects, repairs, learning, and field diagnostics.
See the Signal. Solve the Problem.
98%
Appreciated how the one-key AUTO function made getting a readable waveform faster and easier.
95%
Found the compact handheld design convenient for electronics troubleshooting away from a full-size workbench.
90%
Enjoyed having essential waveform measurement and trigger controls available in one portable device.
Results based on 90-day consumer usage.
Find the Signal. Understand the Problem.
Troubleshooting gets easier when you can actually see what your circuit is doing. The SignalView Pro combines a 2.5 MS/s sampling rate, 200 kHz bandwidth, three trigger modes, and a clear 2.8-inch display inside a device that weighs just 100 grams. Whether you're diagnosing an electronics project, checking an appliance circuit, learning waveform fundamentals, or handling a repair away from your workbench, one-key AUTO adjustment helps get the signal on screen quickly while manual controls remain available when you need greater control.
| Tekario | Others | |
|---|---|---|
| 2.5 MS/s Real-Time Sampling | ||
| 200 kHz Analog Bandwidth | ||
| One-Key AUTO Setup | ||
| Clear 2.8-Inch Color Display | ||
| Three Trigger Modes | ||
| Rechargeable & Pocket-Sized |
Testimonials
FAQ
What can the SignalView Pro be used for?
What can the SignalView Pro be used for?
It is designed for basic signal analysis and troubleshooting in electronics maintenance, DIY projects, educational laboratories, appliance servicing, automotive electrical work, and similar low-frequency applications.
What is its sampling rate and bandwidth?
What is its sampling rate and bandwidth?
The SignalView Pro has a real-time sampling rate of 2.5 MS/s and an analog bandwidth of 200 kHz.
What does the AUTO button do?
What does the AUTO button do?
The AUTO function automatically adjusts relevant waveform settings so the measured signal can be displayed quickly without requiring extensive manual adjustment.
How long does the battery last?
How long does the battery last?
Its built-in 1000 mAh rechargeable lithium battery provides approximately four hours of continuous operation after a full charge.
What trigger modes are available?
What trigger modes are available?
The SignalView Pro provides Auto, Normal, and Single trigger modes, giving users flexibility when observing different types of signals.
